LINK MXS Strada 5" Dash - Street Edition

Link MXS Strada 5” dash, powered by AIM.

The Link MXS Strada Street edition is a full colour, 5-inch dash display legal for road use featuring 10 RGB shift lights and street icons down the side of the dash. It is pre-configured to work with all Link G4+/G4X Wire-In and Plug-in ECU's. See features tab for more information.

This listing is for the 'Street edition', please see the 'Race edition' if you are looking for a dash for motorsport purposes. This dash is also available in a 7” version.

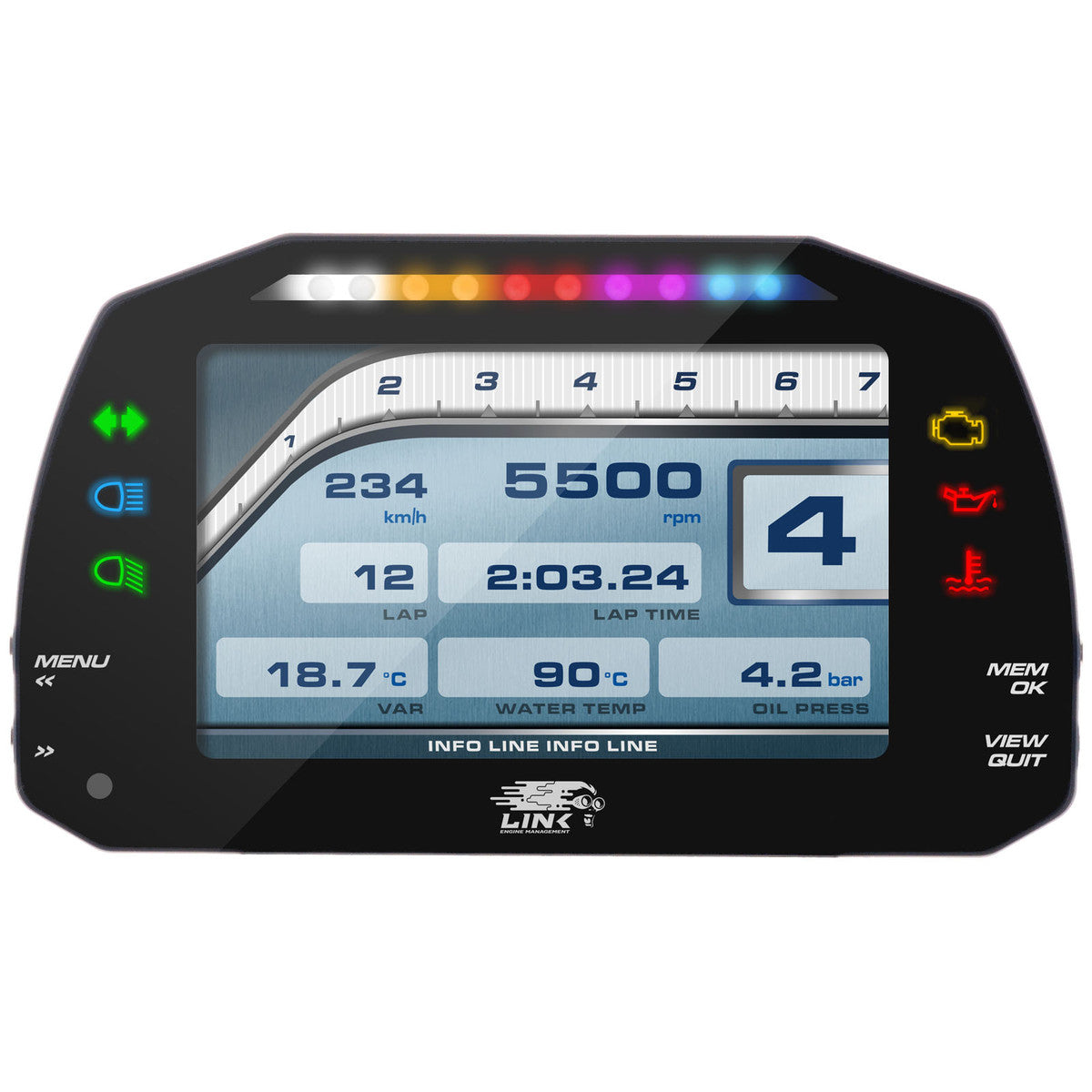

The Link MXS Strada Street Edition dash features customisable shift lights, six street icons and a high contrast 5” TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.

The 10 multi-coloured RGB shift lights on the MXS Strada can be customised to your liking to define the RPM threshold for each single gear. There are also 6 Street Icons located to the side of the screen. These include an indicator light, headlight, high beam, check engine, oil pressure warning light and temperature warning light.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The Link MXS connects directly to your Link ECU via the pin kit and wiring provided in the box. To use with plugin ECU’s - CANPCB and CANF connectors will be required (Purchased separately).

The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.

Included in the box:
Link MXS 1.2 Strada
USB cable
14 pin standard wiring
23 pin connector + contacts


GPS module available separately.

Dimensions: 169.4x97x23 mm
Weight: 480 g
Power consumption: 400 mA
Waterproof: IP65
